Ford 1931 Hot rod

2 participants

Page 2 sur 6 Précédent  1, 2, 3, 4, 5, 6  Suivant

Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Ford Model A

Message  Predicta Sam 14 Sep - 10:38

Ford 1931 Hot rod - Page 2 Kgrhqf38
1931 ford model a 2dr sedan, chopped 3" channeled 4",filled roof, all new glass, painted satin black with flames     4" dropped front axle with 48 ford brakes and spindles 40ford split wish bones,8"ford rearend,rear ladder bars sway bar and coil overs, coker www tires 5.60.15 front L78 rear, aluminum radiator 32 fiberglass grill shell vega steering box,350 chevy motor bored 60 over tri power with 94 carburetors, turbo 350 tranny,  auto meter gauges, lokar shifter, car runs and drives great! very reliable fast and a great head turner not a show car but a sweet driver, finish the interior your way and the car is done was built 10 years ago and does show some age but adds some character

Ford 1931 Hot rod - Page 2 Kgrhqf39

Ford 1931 Hot rod - Page 2 Kgrhqj40

Ford 1931 Hot rod - Page 2 Kgrhqn32

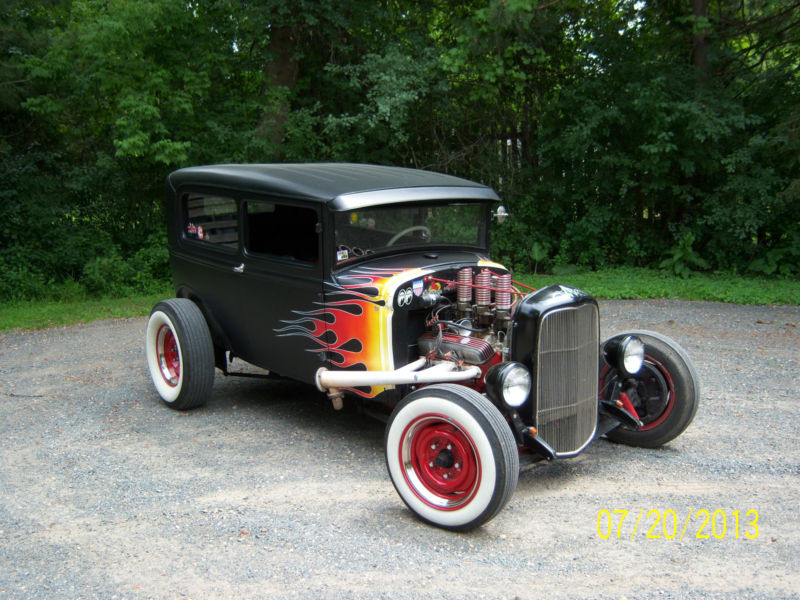

Ford 1931 Hot rod - Page 2 Kgrhqn33

Ford 1931 Hot rod - Page 2 Kgrhqv41

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 14 Sep - 17:07

Ford 1931 Hot rod - Page 2 Kgrhqz44

Ford 1931 Hot rod - Page 2 T2ec1176

Ford 1931 Hot rod - Page 2 T2ec1177

Ford 1931 Hot rod - Page 2 T2ec1178

Ford 1931 Hot rod - Page 2 T2ec1179

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 FORD MODEL A Lowboy Roadster

Message  Predicta Mar 15 Oct - 18:25

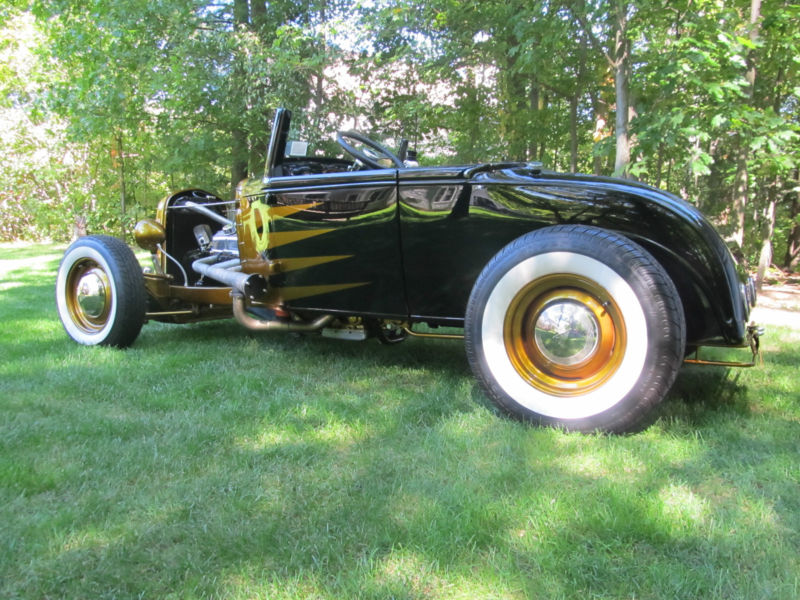

Ford 1931 Hot rod - Page 2 Kgrhqj21
This is a true 1931 all steel model A lowboy roadster, this vehicle is classified as a nostalgia Hot Rod. The cars paint job is done in black gloss with 24 kt gold paint scallops and the undercarriage is painted in 24 kt gold as well as the wheels.The car has a Chevy 350 engine and a 350 turbo automatic transmission, full stainless steel exhaust system. The engine has a lot of chrome and painted parts and has heat wrapped headers.The dash is out of a 1957 Chevy all gauges and lights are functional. The gas tank is a RCI fuel cell, front disk brakes, drum rear brakes with stainless braided brake lines.
Ford 1931 Hot rod - Page 2 Kgrhqj22

Ford 1931 Hot rod - Page 2 Kgrhqr25

Ford 1931 Hot rod - Page 2 Kgrhqr26

Ford 1931 Hot rod - Page 2 Kgrhqv17

Ford 1931 Hot rod - Page 2 T2ec1669

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 FORD MODEL A ROADSTER HOT ROD

Message  Predicta Sam 26 Oct - 17:38

OU ARE LOOKING AT A 1931 FORD MODEL A ROADSTER
Ford 1931 Hot rod - Page 2 Kgrhqi11

ORIGINALLY A SPORT COUPE

IF YOU ARE LOOKING FOR A TURN KEY HOT ROD THAT IS DIFFERENT FROM THE REST THIS IS IT

THIS CAR IS NOT AIR BAGGED BUT JUST HIGH ENOUGH TO BE VERY DRIVABLE

ALTHOUGH NOT SPEED BUMP OR ROAD KILL FRIENDLY

I HAVE LOGGED JUST OVER 3000 MILES SINCE COMPLETED IT IS A BLAST TO DRIVE AND HATE TO SELL IT BUT I AM BUILDING A NEW ROADSTER AND NEED TO SELL THIS ONE TO COMPLETE THE NEW ONE
Ford 1931 Hot rod - Page 2 Kgrhqj26
UPCOMING FEATURE IN RODZ MAGAZINE******MULTIPLE AWARDS AND BEST OF SHOWS*************

GM 350 ZZ4 CRATE MOTOR
Ford 1931 Hot rod - Page 2 Kgrhqv20
350 HORSE POWER

UNILITE II DISTRIBUTOR

WEIAND INTAKE WITH ROCHESTOR 2G CARBS
Ford 1931 Hot rod - Page 2 T2ec1115
TURBO 350 WITH A MANUAL VALVE BODY, SHIFT KIT , DERALE TRANS PAN AND 2200 TCI CONVERTER

EARLY 1962 9 INCH WITH MOSER NODULAR CENTER SECTION WITH 3;89 GEARS , POSI , AND MOSER AXLES

B&M SHIFTER WITH CORVETTE HANDLE

CUSTOM 20 GALLON ALUMINUM GAS TANK

18 INCH ALUMINUM MILK TRUCK STYLE WHEELS BACKS ARE 18X 5 1/2 FRONTS ARE 18X 4 1/2

7.50 18's lestors and 4.50 18's firestone motor cycle tires

DEUCE MANUFACTURING FAKEY DISC BRAKES IN THE FRONT AND LARGE FORD BRAKES IN THE REAR WITH SO-CAL BUICK STYLE FINNED COVERS

SUPERBELL FRONT AXLE WITH NEEDLE BEARING KING PINS

SO-CAL STEERING STABILIZER

CUSTOM 4 LINK STYLE REAR SUSPENSION WITH QUARTER ELLIPTIC SPRINGS
Ford 1931 Hot rod - Page 2 T2ec1116
WEIGHT IS 2000 POUNDS WITH A HALF TANK OF GAS

EARLY FALCON RADIATOR REDONE WITH A HIGH EFFICIENCY CORE

CUSTOM UNIBODY FRAME

BODY IS DYNAMATED
Ford 1931 Hot rod - Page 2 T2ec1117
BODY IS HIGH FILL PRIMER WITH BLACK MIXED INTO IT TO DARKEN IT

RON FRANCIS WIRING

MOON EYES GAUGES

1950 MERC STEERING BOX

PIN STRIPPED BY ALAN JOHNSON

51 FORD DASH

1950 PONTIAC TAIL LIGHTS
Ford 1931 Hot rod - Page 2 T2ec1118
GUIDE 682 C HEADLIGHTS

CUSTOM TANNAU COVER

COVICO STEERING WHEEL

CUSTOM HEADERS WITH BAFFLES

HINGED 1937 TRUCK HOOD AND GRILL

BOMBER STYLE SEATS WITH CANVAS CUSHIONS

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Ford Street Rod 5 Window Coupe

Message  Predicta Sam 26 Oct - 17:49

The Ford Model A of 1928–1931 was the second huge success for the Ford Motor Company, after its predecessor, the Model T. First produced on October 20, 1927 it replaced the venerable Model T, which had been produced for 18 years. This new Model A was designated as a 1928 model and was available in four standard colors.
Ford 1931 Hot rod - Page 2 A4476010
By February 1929, one million Model As had been sold, and by 24 July, two million.  In March 1930, Model A sales hit three million, and there were nine body styles available. The Model A was produced through 1931. Its successor was the Model B, followed by the Model 18.

VIN A4476093
Ford 1931 Hot rod - Page 2 A4476011
Mechanics

1974 350ci Chevy Truck Engine (0010)

Turbo 350 Automatic Transmission
Ford 1931 Hot rod - Page 2 A4476012
Front Disc Brakes

Chrome Shorty Headers

Flowmaster Mufflers
Ford 1931 Hot rod - Page 2 A4476013
Fend Aluminum Valve Covers

Edelbrock Carb

Edelbrock Intake

HEI Distributor
Ford 1931 Hot rod - Page 2 A4476014
Aluminum Air Cleaner

Ford 8” Rear End

Rear Coil Over Shocks

Rear Ladder Bar Setup

Chrome Close Out Panel

Chrome Oil Pan

4 Link Up Front
Ford 1931 Hot rod - Page 2 A4476015
Single Spring Up Front

Chrome Alternator

Chrome Pulleys

Chrome Shocks (Front)
Ford 1931 Hot rod - Page 2 A4476016
Wire Mesh Cover for Radiator

Electric Fan

Body

All Henry Ford Steel

No Chop

White Vinyl Top
Ford 1931 Hot rod - Page 2 A4476017
Rearview Mirrors

Ford Headlights

Tilt Out Windshield
Beautiful Dark Red Metallic Paint

Solid Straight Body
Ford 1931 Hot rod - Page 2 A4476022
Doors Fit and Operate Great

Door Lips and Jambs are Clean and Solid

Beautiful Chrome

Door Handles are Beautiful

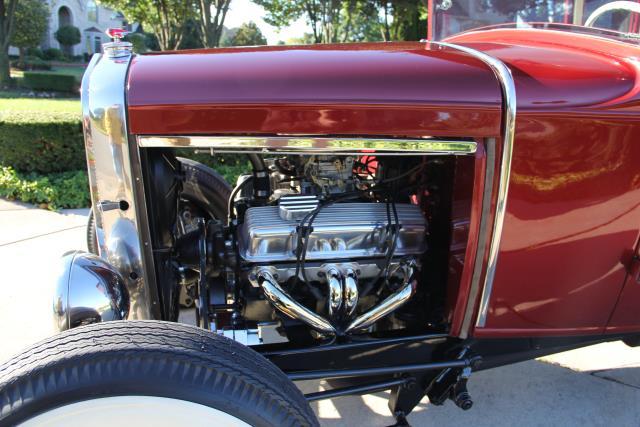

Ford 1931 Hot rod - Page 2 A4476019
Finished Trunk (Formerly Rumble Seat)

Brand New Tires

Firestone Wide Whites – 5x5.25x16 Front, 5x7x16 Rear

Beautifully Painted Wheels with New Wheel Covers
Ford 1931 Hot rod - Page 2 A4476020
Detailed Frame Rails

Boxed Frame, Front to Back

Interior

All New White Interior

Tall Lokar Shifter

Beautiful Door Panels

Nice Interior Handles
Ford 1931 Hot rod - Page 2 A4476021
Painted Steering Wheel

Beautiful Dash

Nice Carpet

Tilt Seats

Beautiful Headliner

New Old Style Gauges

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 26 Oct - 17:54

Ford 1931 Hot rod - Page 2 A4476023

Ford 1931 Hot rod - Page 2 A4476024

Ford 1931 Hot rod - Page 2 A4476025

Ford 1931 Hot rod - Page 2 A4476026

Ford 1931 Hot rod - Page 2 A4476027

Ford 1931 Hot rod - Page 2 A4476028

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Mar 29 Oct - 6:15

Ford 1931 Hot rod - Page 2 31ford10

Ford 1931 Hot rod - Page 2 94836910

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Model A Tudor Hemi

Message  Predicta Mar 19 Nov - 20:58

Ford 1931 Hot rod - Page 2 _5713
Here we have a period correct 1931 Ford Tudor Sedan. Body was an original 39,000 mile virgin. Still has original Ford black paint. Chopped 4 inches and channeled 4 inches. Aftermarket square tube custom chassis. 1955 Dodge 270 Super Red Ram Hemi totally rebuilt. 350 Turbo also rebuilt. 39 Ford Banjo style rear end. Original style Ford juice brakes. Quarter elliptical suicide front end with 49 Buick knee action shocks. New Corvair steering box. 19 inch original wire wheels with new Coker rubber. Custom mufflered exhaust sounds sweet. Original Holley 94s rebuilt by Charlie Price. Custom air cleaners. 1950s custom steering wheel with 1923 Rose inlayed suicide knob. Shifter is 37 Ford 1-ton on custom quarter stick. Trico air con as seen in pictures. The car was built 5 years ago with all parts and pieces period correct for a 50s vintage hot rod......excluding parts that were used for safety reasons or for drivability. Not a race car, but it is quick. Too much power for the wire wheels.
Ford 1931 Hot rod - Page 2 _57bn11

Ford 1931 Hot rod - Page 2 _57dud10

Ford 1931 Hot rod - Page 2 _57f10

Ford 1931 Hot rod - Page 2 _57fdt10

Ford 1931 Hot rod - Page 2 _57ff10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Mar 19 Nov - 21:02

Ford 1931 Hot rod - Page 2 _57fiy10

Ford 1931 Hot rod - Page 2 _57fyi10

Ford 1931 Hot rod - Page 2 _57gg10

Ford 1931 Hot rod - Page 2 _57gg11

Ford 1931 Hot rod - Page 2 _57xsr10

Ford 1931 Hot rod - Page 2 _57xwd10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Ford Model A Roadster

Message  Predicta Sam 4 Jan - 8:55

Ford 1931 Hot rod - Page 2 _411
All Steel 1931 High Boy Ford Roadster , Chassis is T.C.I Custom Frame with 4" Drop Axle ,Chrome 4 Bar Steering Arms , Vega Steering Box , 37 Ford Spindles with Finned Buick Drums , Rear 4 Link Chrome with Coil Over Shocks, Ford 9" Rear End , American Mag Wheels , Buick Nailhead (1965) 425 cu in Plus .30 Over with Pocket Ported Heads , Polished Offy Intake with 3x2 Rochester Carbs Polished Finned Air Cleaners , Polished Buick Value Covers , Custom Jet Hot Coated Headers with Cut offs , Body is a Brookville All Steel 31 Ford Body , Flat Floors and 1932 Steel Grille Shell with Griffin Aluminum Radiator with 18" Electric Fan , 31 Deluxe Windshield and Frame , 36 Head Lights with Halogen sealed Beams , 1950 Pontaic Taillights , 32 Dash with SW "Wing " Gauges , IDIDIT Tilt Steering Column with Flame Billet Wheel , Rebuilt GM TH400 3 Spd Auto Trans , Interior Red Leather Look Upholstery

Ford 1931 Hot rod - Page 2 Ezr11

Ford 1931 Hot rod - Page 2 Fff12

Ford 1931 Hot rod - Page 2 Frezf10

Ford 1931 Hot rod - Page 2 Rer10

Ford 1931 Hot rod - Page 2 Rerere12

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 4 Jan - 8:56

Ford 1931 Hot rod - Page 2 Rr10

Ford 1931 Hot rod - Page 2 Ze10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Grasshooper - '31 ford Pick up hot rod - Alexander brothers

Message  Predicta Mer 29 Jan - 22:44

The Alexander Brothers, Larry and Mike, are amongst the most well-known builders and customisers from the golden era of hot rodding. At Mecum Auctions’ November 21 – 23 Anaheim auction, the Alexander Bros. “Grasshopper” 1931 Ford Model A pickup, one of their best-known creations, will cross the blocks.

Ford 1931 Hot rod - Page 2 1c735910

Founded in Detroit, Michigan, in 1957, the Alexander Brothers soon established a reputation for quality workmanship and impressive individuality. Amongst their better-known creations are the 1932 Ford “Silver Sapphire” coupe which became famous as The Beach Boys' “Little Deuce Coupe”; the “Alexa”, built to Harry Bradley's design for the 1964 Ford Motor Company’s Custom Car Caravan, and the “Victorian”, a 1955 Ford Crown Victoria named in Car Craft Magazine's Top 10 in 1960.

Ford 1931 Hot rod - Page 2 3cf79f10

Soon after setting up their car customising business, the brothers were looking for a ‘shop truck’ to promote their business. The pickup they eventually found a year later was this Model A, purchased for the sum of US$100.

Ford 1931 Hot rod - Page 2 6b342910

As you’d expect, the Model A didn’t stay “stock” for long, the brothers treating their proposed workhorse to a 2 ½ inch roof chop, ’29 Model A guards, roof panel fill, ’42 model Dodge headlights, new tray bed and grille, to name a few.

Ford 1931 Hot rod - Page 2 058ea810

A dropped front axle and modified rear crossmember gave the pickup its desired stance, while the powerplant for the rolling advertisement was a reasonably mild ’51 Ford 239ci flathead V8, hooked up to a 3-speed manual transmission.

Ford 1931 Hot rod - Page 2 74a25e10

Finishing touch was the striking ‘Glade Green’ metallic paint, which led to the Grasshopper nickname, and scored the Alexander Brothers the ‘Best Paint’ award at the 1958 Detroit Autorama.

Ford 1931 Hot rod - Page 2 69b03c10

How much actual work the Grasshopper did is debatable, but the pickup was a show circuit regular, until the Alexander brothers closed their business in 1969. Prior to this, the Grasshopper had been sold to an Ohio-based enthusiast who continued to show it, with the next owner hanging onto it for thirty years before selling it back to Mike Alexander in 2001, who then commissioned a restoration of it, inspired by the 50th Anniversary of the original Detroit Autorama in 2002.

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Mer 29 Jan - 22:49

Ford 1931 Hot rod - Page 2 C4b8e010

As part of the restoration, Alexander replaced the original frame with a reproduction 1929 chassis and had Motor City Flatheads prepare a 1948-vintage V8, fitted with Offenhauser finned high-compression heads, an Edmunds high-rise intake manifold with dual Stromberg 97 carburettors and modern electronic ignition. The original 1939 Ford manual transmission was replaced with a Ford C4 automatic.

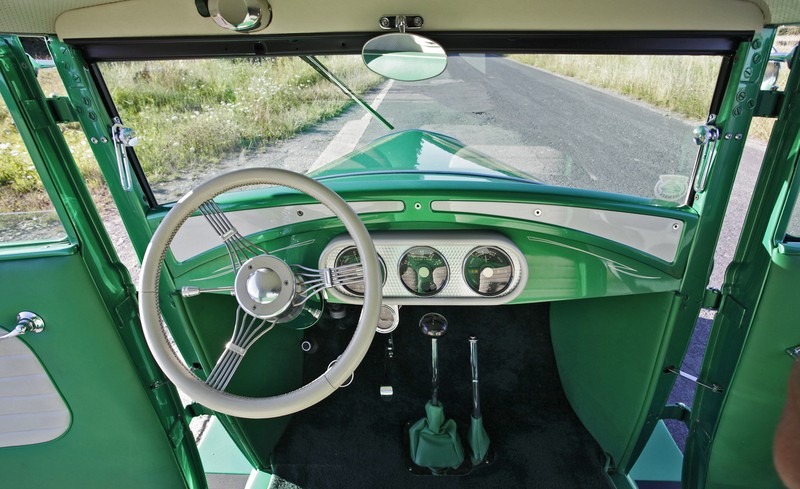

Ford 1931 Hot rod - Page 2 Fde81010

Metalcrafters, Inc. in California restored the bodywork and resprayed the Grasshopper’s new Sikkens Emerald Green enamel paint. The green and white vinyl upholstery was replaced, the original handmade instrument bezel (with Chrysler gauges) was retained, as well as the banjo steering wheel, with a further touch of originality provided by Paul Hatton, the Grasshopper’s original tailgate letterer and pinstriper, who reprised his work for the restoration.

Ford 1931 Hot rod - Page 2 E43e4d10

At the back, the Bell dropped rear axle was rechromed, with the pickup bed lined in polished oak timber and capped by a white hard tonneau cover.
Following completion, the Grasshopper was shown at the 50th Anniversary Detroit Autorama in 2002, then sold at auction in 2009 for US$143,000. Now consigned with Mecum for its Anaheim auction, the Alexander Brothers pickup will join a few other hot rods, including a chopped and dropped 1940 Cadillac, radically chopped 1953 Mercury and Grand National Roadster Show trophy-winning “phantom” 1949 Cadillac 2-door wagon.

Mecum’s Anaheim auction is scheduled to take place November 21-23, with the Grasshopper to be auctioned on the 23rd. For more information, visit Mecum.com.

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 FORD TRADITIONAL HOT ROD

Message  Predicta Sam 8 Fév - 12:30

BEAUTIFUL... BEAUTIFUL... BEAUTIFUL!!!
........ 1931 FORD TRUCK ........

Ford 1931 Hot rod - Page 2 01-cop10


BODY:


1931 Henry Ford Cab
Chopped Top, 3 inches!!
Body Channeled 3" Over Custom Frame
Custom Bobbed Bed
Drilled Visor
New Front Windshield and Side Door Glass
Shaved Door Handles, Electronic Popper Buttons in Interior
Also Has Remote Key Fob and Manuel Levers unders Doors
So you always have a Way In!


Ford 1931 Hot rod - Page 2 02-cop10

SUSPENSION / CHASSIS:
Custom Frame built out of 2x3
Z'ed in Rear
Mid 40's Straight Axle w/ Split Wisbones
Juice Brakes that Work Great! Stop NICE!
New Firestone Bias Ply Big and Littles
Front 5.60x15 and Rear 8.90x15
5 on 5 1/2 Bolt Pattern Steelies w/ Spider Caps
Excellent Ride and Handling!


Ford 1931 Hot rod - Page 2 02-cop11



THE ENGINE / DRIVETRAIN:


Clean Rebuilt Early 60's 283 Smallblock
Working and SET UP Correctly 3 Deuce Carb Setup
Newer Lifters, Chrome moly Push Rods and Mild Cam
Great Sound...
Sounds like a Hot Rot through the exhaust...
...but un-Cap the Headers for True Enthusiast Tone!
350TH Automatic Transmission
Lokar Shifter w/ 8-Ball Push in Shifter Knob
Dand 30 or 35 Rear End. Good Gearing
Takes of Hard, Fine for 70-80 MPH!
(approx: 2.23 gears)
Ford 1931 Hot rod - Page 2 05-cop10

15 Gallon Fuel Cell and Odyssey Battery
Both Hidden by Bed Cover (framed from Vintage Store Sign!)
Also storage area underneath that is also
...removable to access Battery

Ford 1931 Hot rod - Page 2 05-cop11
INTERIOR:

VERY COMFORTABLE


Real and Rare Bomber Seats
Metal Flake Steering Wheel
Perfect Amount of Padding on Seats
Sits Very Nice and Comfortable!


Working Turn Signals
Working Headlights


Shaved Door Handles, Electronic Popper Buttons in Interior
Also Has Remote Key Fob and Manuel Levers unders Doors
So you always have a Way In!


Ford 1931 Hot rod - Page 2 06-cop10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 8 Fév - 12:52

Ford 1931 Hot rod - Page 2 06-cop11

Ford 1931 Hot rod - Page 2 07-cop11

Ford 1931 Hot rod - Page 2 08-cop10

Ford 1931 Hot rod - Page 2 10-cop12

Ford 1931 Hot rod - Page 2 10-cop13

Ford 1931 Hot rod - Page 2 11-cop10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 8 Fév - 12:55

Ford 1931 Hot rod - Page 2 12-cop10

Ford 1931 Hot rod - Page 2 13-cop10

Ford 1931 Hot rod - Page 2 14-cop11

Ford 1931 Hot rod - Page 2 15-cop10

Ford 1931 Hot rod - Page 2 16-cop11

Ford 1931 Hot rod - Page 2 17-cop10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 8 Fév - 12:58

Ford 1931 Hot rod - Page 2 19-cop10

Ford 1931 Hot rod - Page 2 22-cop10

Ford 1931 Hot rod - Page 2 23-cop10

Ford 1931 Hot rod - Page 2 24-cop11

Ford 1931 Hot rod - Page 2 28-cop10

Ford 1931 Hot rod - Page 2 29-cop11


_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Sam 8 Fév - 12:59

Ford 1931 Hot rod - Page 2 31-cop10

Ford 1931 Hot rod - Page 2 32-cop10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Ford Model A Coupe - Pure Gloss

Message  Predicta Mar 25 Fév - 8:56

The beginning of my 1931 Ford coupe and obsession with hot rods began around 1991. I was a punk rock kid looking for something new. I was working with my father in the family tool and die business and going to night school taking welding classes. I started going to Rat Fink Reunion shows at Mooneyes with my friends Don Misraji and Rick Stine. We met Taco Bill, who was really into mini bikes and had the greatest collection around. One Saturday Don and I went to look at a mini bike at Taco Bill's, and while Bill and Don were talking mini bikes, I caught a glimpse of his 1931 Ford sedan. He had it all ripped apart and I could see where he was going with it. He was mocking up the frame, and since I was a welder and machinist I starting thinking that I could build one of these.
Ford 1931 Hot rod - Page 2 0905rc18
Jump ahead to 2004, I'd managed to save $3,500 for my hot rod fund, so I started my quest to find a Model A body. Why the Model A? Because I always liked the visors on Model As and I couldn't afford a '32-36. Around this time I started hanging around Nick O'Teen's shop where he built and painted hot rods, customs, and bikes. I had looked at some really bad bodies for $1,000, but I wanted to find something a little better that I could chop cleanly.
Ford 1931 Hot rod - Page 2 0905rc19
I was up early one morning and started checking out the Recycler online, and there was an ad for a 1931 coupe with a Flathead. I had a feeling about this one, so I called my dad and told him I was running late and wouldn't be at work till around 10:30. I drove to Claremont and when I got there the seller led me around the side of his house, and there's the coupe sitting on a badly stick-welded Model A frame with a 21-stud '37 Flathead barely bolted down. The body had good doors that shut OK. All the glass and wood was still there, but the floors were gone and the wheelwells were rusted out. It had a dropped axle and '40 juice brakes.

Ford 1931 Hot rod - Page 2 0905rc20
I was standing there thinking, it's a great canvas, but the motor looks like it's never going to run again. Is this the one? I told the guy I'd think about it and would be back. I went and sat in my car and thought, I gotta get that coupe! So I went back and made my offer. He agreed and even offered to tow it home to my house for free, because he had a trailer.
Ford 1931 Hot rod - Page 2 0905rc21
Once it was in my garage I started looking at it and thinking, where the hell do I start? I bought Vern Tardel's book, How to Build a Hot Rod, which turned out to be the bible for me. When I started, the whole rat rod, rusted, slammed, crappy welded cars were the trend. I didn't want to build one of those. I wanted to build a hot rod. So I read and started on the chassis. The frame was a mess, so I bought a plasma cutter and started cutting and welding.
Ford 1931 Hot rod - Page 2 0905rc22
I moved the front crossmember back 4inches so I could drop the radiator in front of the crossmember, allowing me to channel the body 8 inches but leave the new grille shell stock. I decided not to use the 21-stud Flathead it came with and found a '50 Ford F-1 truck with an 8BA Flathead in it for $500. I just wanted the motor, shock mounts, and steering box, so I pulled the parts I needed and sold the rest of the truck on eBay for $500.
Ford 1931 Hot rod - Page 2 0905rc23

When I pulled the engine apart, it had a Mercury crank and rods. Jackpot! I dropped the block off at H&H Flathead for machining. Once I got the engine pieces back I started to assemble it with my friend Rick Stine. I wanted to put some speed equipment on it, so I bought the Eddie Meyer repro intake from Speedway and was going to run the stock heads till I got some extra cash. Then this punk rock friend of mine tells me he has some original '49-53 Eddie Meyer heads and he knew I had a big punk rock record collection. So we traded those heads for some of my old records. I had Max Herman Sr. at H&H deck and redome the heads to get the compression ratio I wanted and then had the engine bench-tested by Mike Herman for my peace of mind.


_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Mar 25 Fév - 8:58

After the engine was finished, I picked up an early Ford pickup open-drive three-speed and a '58 Ford 9-inch so I could start building the chassis K-member and ladder bars. I mocked up the motor in the frame and made some motor mounts with a subtle design on them. The chassis was now a solid foundation rolling on all four tires, so I started channeling the body and building the mounts (two in the front, two in the middle, and two in the back).

I cut out the firewall and replaced it with .080 flat stainless steel sheet that I had polished like a mirror. Once it was installed and I could see two motors, I didn't like the way it looked, so Nick O'Teen and I decided to engine-turn the firewall. Man! It took two days of engine turning!
Ford 1931 Hot rod - Page 2 0905rc26

The floor was next. I welded -inch square tubing on the floor for a skeleton that I could plug-weld 16-gauge sheetmetal floors to. I then welded temporary support bars inside the body so it wouldn't lose its shape while Nick and I were chopping it. We chopped the coupe with the doors on and then took it to Nick's shop for bodywork and paint.

When I started to build my coupe, I thought I was going to paint it a suede color for the first few months till I got some money together to finish it. But once Nick had it for a couple of days he came over and told me that he couldn't let me do that and that it had to be finished glossy. I decided to listen to my wise friend and looked through the House of Kolors book and found the Maltise Maroon color. It took Nick around 10 months to finish the bodywork and paint. He had some prior jobs he had to finish and I had told him to take his time.

I got the car back and Nick helped me assemble the coupe in my garage where I built it. I built the headers myself because I wanted to have a turnout on the end to avoid the black exhaust on the side of the door. I had a custom radiator built by Radiator Ralph in Lakewood. Nick did the wiring, and once we got the starter solenoid figured out it started right up and sounded great. My coupe was finally alive!
1931 Ford Model A Coupe Window Visor
Ford 1931 Hot rod - Page 2 0905rc25
We finished the brakes and plumbing just in time to drive it 55 miles to Ventura for the Primer Nationals. Everyone loved the coupe and it was a really good feeling knowing people liked what I built. Halfway through the day Bobby Walden came up and told me I had to move my car. When I (politely?) asked him why, he told me, "You have to move your coupe to the Winner's Circle...You won Best Hot Rod!" I was like, "What!!!??!!" I was in shock.

While I was in Ventura I met Dave Martinez from Indiana. He told me he was an upholstery guy and that he wanted to upholster my coupe because it reminded him of his old coupe he'd sold to start his business. I said yes, so Dave drove down from Indiana with his sewing machine in his truck and stayed at my house for a week while he finished the interior.

This coupe has really become a family member to me and my friends because it was something I wanted to finish...and did. I've made some great new friends along the way and am looking forward to showing it and driving it.
Ford 1931 Hot rod - Page 2 0905rc24

Rod & Custom Feature Car
Rudi Hillebrand
North Hollywood, California
1931 Ford Model A Coupe

Chassis
Rudi retained the original, but poorly modified, frame that came with the coupe when he bought it and cut it apart repeatedly, repaired the rust, filled the holes, and straightened and boxed it. The finished frame ended up Z'd 4 inches on both ends and stretched 4 inches. The front crossmember was moved 4 inches back and a new K-member was built from 3x3 tubing. A vintage 4-inch dropped axle with '40 juice brakes hangs on a Posies spring with split '39 Zephyr wishbones. An F-1 pickup 'box handles the steering. Out back a '58 Ford pickup 9-inch is suspended with homemade 43-inch ladder bars and a Model A spring.

Drivetrain
The engine choice is critical if you're building a hoodless traditional hot rod, so Rudi went with a '49 Flathead bored and stroked to 268ci by H&H Flatheads. Once the machine work was done, Rudi and his buddy Rick Stine filled the block with a Mercury 4-inch crank with stock Merc rods, Egge pistons, and an H&H cam. Extra power and dress-up come from the Eddie Meyer aluminum heads and high-rise 2x2 intake. The 1- to 3-inch cone tapered lakes pipes were homemade. The transmission is an open-drive Ford pickup threespeed with a reworked stock shifter.

Wheels & Tires
A set of '40 Ford pickup 16-inch steelies were cleaned up and sprayed black and then wrapped in 6.00 and 7.00 Firestone wide whites.
Ford 1931 Hot rod - Page 2 0905rc27
Body & Paint
The body was unchopped and a bit rough when Rudi got his hands on it. It was missing the floor, so the decision to channel it 8 inches must have been a little easier. Rudi and his friend Nick O'Teen worked the body back to almost stock with the exception of the 4-inch chop and filled cowl. Once the body was ready, Nick sprayed the House of Kolor Maltise Maroon. The stock door and trunk handles, Guide headlights, repro '39 teardrops and engine-turned firewall provide the perfect complement to the flawless paint.

Interior
The stock dash was replaced with a Howell's Sheetmetal '32-style dash filled with Stewart Warner Wings gauges. The Ford F-1 column is held in place with a custom aluminum drop and topped with a Limeworks Speed Shop '39 Banjo wheel. Dave Martinez covered the custom bench seat and door panels in chocolate brown leather and the headliner in black worn leather. The channeled floor was sprayed in gray and black Duplicolor spatter paint, and engine-turned toeboards flank the exposed three-speed trans.

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Ford Model A 1931 Ford Model A - American Graffiti Clone

Message  Predicta Dim 16 Mar - 19:09

1931 Ford Model A  American Graffiti clone, 5 window coupe,  5 speed with 4 wheel disc brakes
Ford 1931 Hot rod - Page 2 _57123
Body:  Steel, top chopped 4 inches, Nice interior, bucket seats with Shelby seat belts, 1949 Packard steering wheel with 1940 Ford horn button. MP3/ IPOD ready with 100watt unit and the speakers located behind seats. Car uses front cowl fuel tank with electric fuel shutoff valve.  Has interior electric heat. 32 Radiator shell, aluminum radiator, Very nice carpeted rear trunk. All new glass. Windows roll up and down nice with "flip out" front windshield. Electric wiper. Carpet, Mats and Headliner are all very nice.
Ford 1931 Hot rod - Page 2 Aa10
Engine: 4 bold main GM crate engine. 3 original Rochester carburetors with progressive linkage (all 3 carbs have been rebuild and came off of a 1958 348 Chev.) Front and rear carbs have no idle circuits and only come into play when accelerator is floored, otherwise you are running on just the center carb. Transistorized ignition. Aluminum intake. Chrome oil pan. Chrome alternator.
Ford 1931 Hot rod - Page 2 Erezez10
Frame: Original 31 frame that has been boxed.  Front has a dropped axle. 4 wheel disc brakes. Coil over rear suspension. T5 5 speed.  8.8 ford narrowed rear end with 3:23 gears. Hydraulic clutch.

Ford 1931 Hot rod - Page 2 Ezrezr12

Electrical: Every component  on this car is fused thru the fuse box and the box receives power from a 50 amp breaker, insuring a safe electrical system. All wiring goes thru frame, front to back.

Ford 1931 Hot rod - Page 2 Ffsdfs10

Ford 1931 Hot rod - Page 2 Jjg10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Predicta Dim 16 Mar - 19:14

Ford 1931 Hot rod - Page 2 Retret10

Ford 1931 Hot rod - Page 2 Rrezr10

Ford 1931 Hot rod - Page 2 Tertre10

Ford 1931 Hot rod - Page 2 Tretrr10

Ford 1931 Hot rod - Page 2 Ttert10

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty '31 Ford Roadster

Message  Predicta Sam 29 Mar - 7:36

Ford 1931 Hot rod - Page 2 12183511

Ford 1931 Hot rod - Page 2 12183512

Ford 1931 Hot rod - Page 2 12183810

Ford 1931 Hot rod - Page 2 12183811

Ford 1931 Hot rod - Page 2 12183910

Ford 1931 Hot rod - Page 2 12184110

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 Ford ModelA - rudy hillebrand

Message  Predicta Sam 29 Mar - 8:28

Ford 1931 Hot rod - Page 2 12263812

Ford 1931 Hot rod - Page 2 12263813

Ford 1931 Hot rod - Page 2 12263814

Ford 1931 Hot rod - Page 2 12263911

Ford 1931 Hot rod - Page 2 12263912

Ford 1931 Hot rod - Page 2 12263913

Ford 1931 Hot rod - Page 2 12264311

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty 1931 FORD ROADSTER

Message  Predicta Mar 15 Avr - 6:10

Ford 1931 Hot rod - Page 2 1931-f10
1931 FORD ROADSTER W/ RUMBLE SEAT


Ford 1931 Hot rod - Page 2 1931-f11
THIS IS A BEAUTIFUL HOT ROD THAT WAS BUILT BY A RETIRED AIR CRAFT MECHANIC. THIS CAR WAS HIS BABY THAT HE DROVE UP UNTIL HIS HEALTH MADE HIM PART WITH HER. HE DEVOTED ALOT OF TIME AND ATTENTION TO DETAIL MAKING THIS LITTLE BEAUTY STAND TALL AND SEPERATE IT FROM ALL OF THE OTHER HOT RODS THAT WAS BUILT WITH AFTERMARKET PARTS. HE TOOK HIS ALL STEELE HENRY FORD BODY AND SIT IT ON TOP OF A 1932 FORD FRAME THAT WAS BOXED FOR STRENGTH. THEN HE ADDED A 1948 FLATHEAD FORD 59AB MOTOR THAT WAS BORED AND BALANCED. THEN HE ADDED A LIGHTENED FLYWHEEL AND STROMBERG 97 CARBERATORS, OFFENHAUSER HEADS AND INTAKE MANIFOLD , AND A MALLORY IGNITION. HE BACKED THAT MOTOR UP WITH A CHEVY 5 SPEED TRANSMISSION AND A 9″ FORD POSITRACTION REAR END W/ 4:11 GEARS. HE THEN CUSTOMIZED A 12 GALLON FUEL TANK SO THAT HE WAS ABLE TO DRIVE IT AND HE OVERHAULED THE 1950′S INSTRUMENTS TO SET THE DASH OFF. THEN HE MADE ALL THE FINAL TOUCHES THAT ONLY A REAL OLD SCHOOLER FROM BACK IN THE DAY COULD PULL OFF TO MAKE THIS JUST AN OUTSTANDING HOT ROD!!!
Ford 1931 Hot rod - Page 2 1931-f12

Ford 1931 Hot rod - Page 2 1931-f13

Ford 1931 Hot rod - Page 2 1931-f14

Ford 1931 Hot rod - Page 2 1931-f15

_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 50258
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

Ford 1931 Hot rod - Page 2 Empty Re: Ford 1931 Hot rod

Message  Contenu sponsorisé


Contenu sponsorisé


Revenir en haut Aller en bas

Page 2 sur 6 Précédent  1, 2, 3, 4, 5, 6  Suivant

Revenir en haut

- Sujets similaires


Permission de ce forum:
Vous ne pouvez pas répondre aux sujets dans ce forum
