1933 - 34 Ford Hot Rod

• Many custom features such as 3" roof chop and hood lengthened 2 1/2" with custom made bed complete with custom rivet work.

• The custom rear panel on the pick up bed is fitted with 51 Pontiac tail lights and is fitted with CrissCraft bezels for accents around the exhaust pipes.

• The body sits on a custom modified frame which achieves this low stance.

• The running gear is 350 c.i. Chevy crate motor backed by a turbo 350 transmission.

• The rear end is from a 51 Ford pick up truck.

• Mounted on parallel leaf springs.

• The front axle is a 4" drop SuperBell fitted with F-1 brakes and located by 40 Ford wishbones.

• The steering box is a Ford unit mounted to give cowl steering.

• The wheels are 5X15 fronts  6 X 16 rears  with 145 X 15 & 235.85 X 16 tires.




Body:
Minotti fiberglass 3 window coupe
Chopped top, channeled floor
Reworked rear pan, doors, cowl, firewall
Fabricated nose, grill, hood & side panels by Tri-C engineering
Final body work and cream paint by George Gray
Maroon graphics & accents by Tom Otis
Hood louvers by Gene Winfield
Electric door latches- suicide doors w/ safety latches
Power windows

Chassis:
Boxed & narrowed 34 Ford frame, fully smoothed and finished
Dual master cylinder with stainless lines
Wilson Welding Buick brake drums- aluminum backing plates, all polished
Magnum 5 inch dropped front axel
Single front leaf spring with chrome shocks
Adjustable coil over shock rear suspension
Custom front and rear sway bars by Tri-C Eng.
Custom torsion bars front and rear
TCI hair pin radius rods- SS polished
Hidden roll cage
Optima heavy duty battery
Mullins vega steering with Borgenson Universal Joints
Painted steel wheels with stainless caps and rings
Coker wide whitewall radial tires

Drive Train:

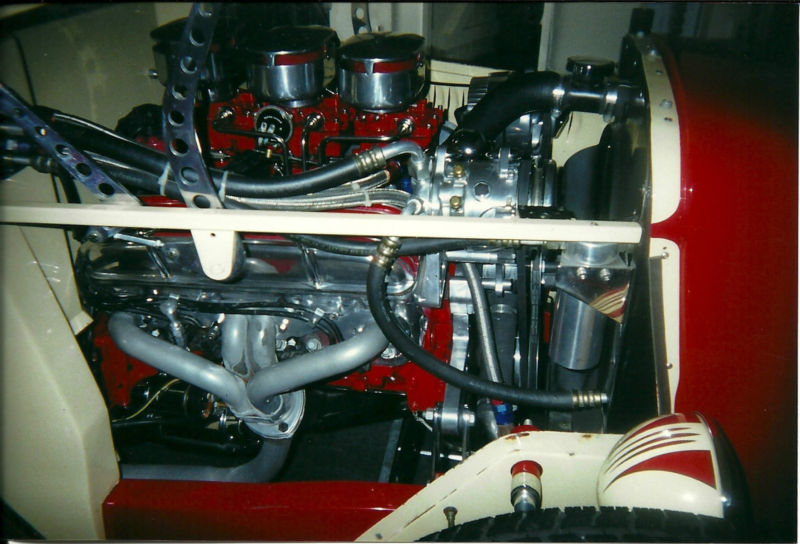

Chevy 5.7 liter high output- 350 Cu. In. crate motor
Polished aluminum heads
Hot rod carburetion tri-power intake and carbs
Rochester carbs painted to match car- polished Edmunds air cleaners
Rod ware engine, alternator, & A/C mounts
Rod ware aluminum water pump
Enos polished alt. A/C compressor & heavy duty starter
(I have complete build specs and details of engine build)
Jet hot coating on entire exhaust system
Continental 4 row radiator with A/C condenser
Modified 700R4 automatic trans with overdrive and cooler
Speedway Eng. super-max quick change rear end- polished with 4.11 gears

Interior:
Connolly magnolia leather- tan wool headliner- maroon wilton wool carpet by Jerry Noone
Classic AM-FM cassette with 4 speakers
Air tique air conditioning and heating
Power windows
Lokar shifter
Custom tilt steering column & hood mount kit by Tri-C Eng.
Tinted glass- Turn signals

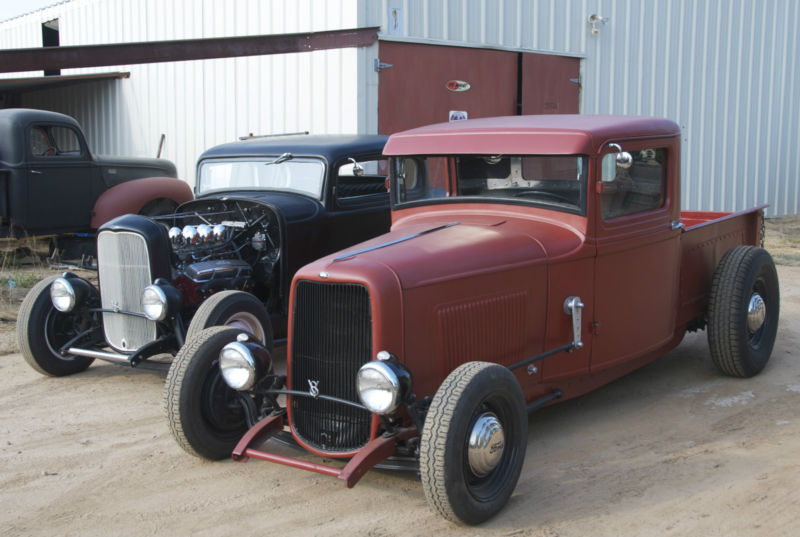

1933 Ford pickup truck. The cab, bed, and grille shell are all original 33 Ford steel pieces. They are all very solid with any/all rust removed and patched. It has less than perfect bodywork but is very presentable as a "driver quality" hotrod. It has pitting and minor dents here and there but is overall pretty good. The cab has been chopped approx. 6 inches and channeled 4 inches. The bed has had the floor raised to accommodate the rear kick up in the frame. The grille has been sectioned 2 inches at the bottom to allow for better ground clearance. It is painted with a single stage flat burgundy enamel. The belt lines and firewall are painted with single stage satin black. The suspension/frame and wheels have all been painted with single stage satin black as well. The frame is original Ford Model A from the cowl forwards. From the cowl back is 2x3 box tubing. The frame is very strong and well built. Front suspension is a SuperBell 4" dropped I-beam axle with a Posies spring. Original 40 Ford split wishbones hold it in place. Hotrod style tube shocks hung from Ford F1 style shock/headlight mounts. 40 Ford front brakes with fresh wheel cylinders, springs, shoes, etc. Cross steer set up with a vega box. So-cal steering dampener. Handles very smooth. The front wheels are original 16" Ford spoke wheels with 600-16 bias ply tires. The rear wheels are original 18" Ford spoke wheels with 600-18 bias ply tires. All tires have tubes and are balanced well. Original 32 Ford truck center caps have been painted to match the wheels. Engine is a GM performance crate 350 small block chevy. It's the "Mexican" block which supposedly has the higher nickel content in the casting. RV cam. Vintage Offenhauser 3x2 intake with 3 freshly rebuilt Holley 94 2bbl carbs. They work off an Eelco progressive linkage. They are tuned very well and fire right up. Idles very smooth. There is an Edelbrock mechanical choke cable that runs to the dash but I have literally never used it. Homemade lakes style headers with internal baffles. They have been wrapped so you won't burn your leg off if you accidentally lean up against them after it's been running. Original Delco 12v generator was recently rebuilt and charges the new sealed battery located under the bed. The engine has 2317 trouble free miles since completion. Transmission is a 350Turbo. Shifts very smooth. New Lokar buttonless shifter with an old glass door knob for the shift knob. Rearend is an early GM g-body rear axle. It's located by a pair of hairpin radius rods and a panhard bar. A Posies 40 Ford rear spring gives it a smooth ride. The rear brakes are good. It has a lower gear ratio so very smooth/low RPM on the highway. Still plenty of get-up-and-go off the line. Engine is cooled by a 65 Mustang radiator that is copper/brass construction and is new. 12 gallon poly gas tank is in the rear of the bed. The truck has been professionally wired with a Speedway 12 circuit wiring harness. all wiring is hidden or loomed with a factory style loom so you don't see any of it. All running lights, headlights, turn signals, hazards, and brights work as they should. New Equus black face gauges. Water temp, oil pressure, speedo and odometer work. There is a working cigarette lighter in the dash for a cell phone charger. Original Guide 682c headlights. 33 Ford truck tail lights. New black automotive grade carpet was installed. Seat bottoms are from a 60's VW bug. The seat back is custom made for the truck. Very comfortable to ride in. I am 6'3" tall and fit okay. Steering wheel is a 13" mooneyes 3 spoke. Lokar throttle and brake pedals. Door handles work as they should. Working cowl vent and pop-out windshield with automotive safety glass, not plexi or lexan. There is a modified hand operated windshield wiper on the drivers side if you get caught in the rain. The bed sports a real wood bed floor and oak side rails that have been stained/finished very well.

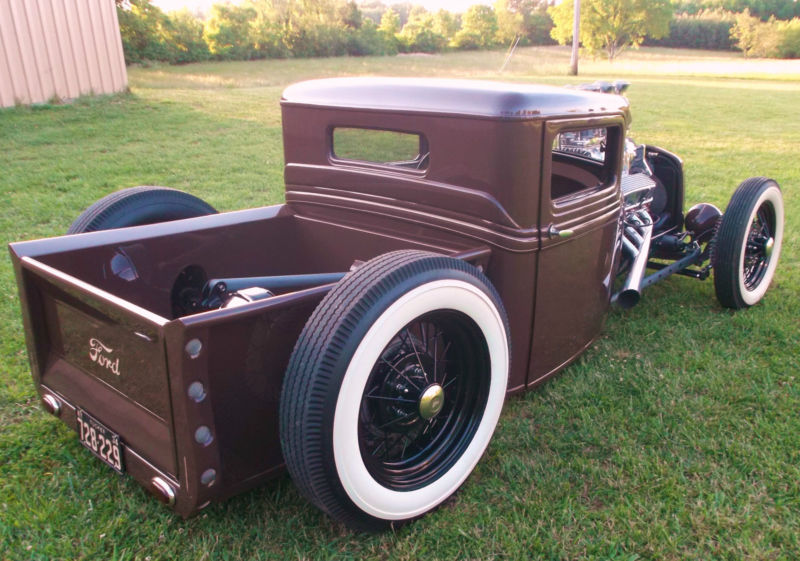

1934 Ford Pickup. Probably one of, if not the most "Wild and Wicked" Hot Rod pickup of this style ever built. This is a brand new fresh finish to a 6 year build. This truck is very practical... Actually if you are looking for something different in style and craftsmanship, then this truck has your name on it. Starting with a very good solid '34 Ford cab, everything else is hand built. It was debuted at this years Detroit Autorama where it received 2 awards including "Best Pickup". It picked up a Street Rodder Top Ten at Goodguys in Nashville. It also just won "Beater of the Year" last weekend at Beatersville in Louisville. It has been shot for a Street Rodder magazine feature to be coming out very soon. It runs, drives and handles great. THIS TRUCK IS BAD!!!

Specs: Chassis- One of a kind frame. Z'd in front with 2x6 front rails with recessed holes. Frame continues under the bed and rearend where qtr eliptic springs and a custom wishbone hang a Ford 9" 3.70 Posi rear axle. The front features a spring over dropped axle and split wishbones also with sleeved holes. Vega steering box and custom built column. All four corners have early Ford lever shocks. All the suspension components have been powdercoated in a raw cast steel finish. Front drum brakes with Buick style drums and rear finned covers. Stops like four wheel disc... Front wheels are 19" Model A wheels with BF Goodrich 5.00x19 WWW. Rear wheels are 19" Model A wheels that have been custom made into 20x6 with 7.00 x 20 tires. All powdercoated gloss black.

Drivetrain- 454 big block Chevy with a Weiand 6.71 polished blower topped with 6 new Strombergs. Comp Cam and lifters. Msd ignition and pro billet distributor. All brand new!!! Backed by a 400 Turbo with stall. Cooled by a 3 row aluminum radiator with electric fan hidden by a custom stainless mesh shroud. Runs most of the time at 170 and has never got over 180 degrees.

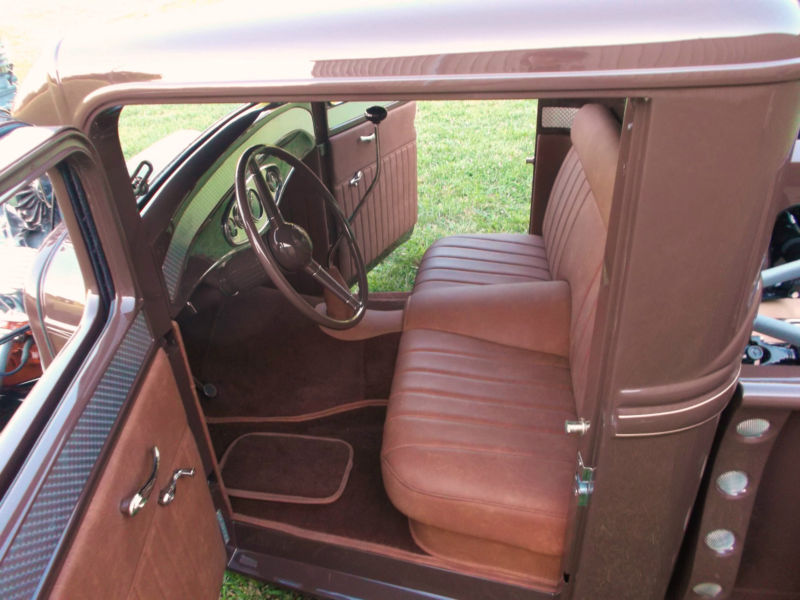

Body- Original Henry built cab. Chopped 4 inches and channeled 2. Hidden door hinges. bearclaw latches with original outside handles, tilt out windshield frame and cowl vent for A/C... All tinted glass with power door windows and crank handle switches. Original dash with gauge insert and Stewart Warner gauges. Interior features engine turned aluminum panels recessed in to dash and door panels. Beautiful rust color leather interior matches the custom mixed chocolate body color. The bed is all custom built. Features a custom built tailgate with original 30's Ford logo. Stake pockets with stainless screen inserts in dimple die holes. And a hard maple wood floor with hand rubbed oil finish and polished stainless strips. '46 Ford taillights bring up the rear. Up front is a sectioned '32 grill shell and stainless insert. '34 Commercial headlights and finished off with some ivory pinstripes by Kirby.

1934 Ford 3 window coupe. This car is freshly built as a TRIBUTE of the legendary Bob and Dick Pierson coupe. Original 1934 frame, steel firewall, and cowl with functional vent. Fiberglass body. Freshened up 5.0 Ford V-8 and AOD transmission. Petronix ignition, Edelbrock carb. Snow white water pump system, Hi-torque starter, aluminum radiator. Polished stainless front suspension, center steering, Stewart Warner gauges, Bomber seats with leather inserts.Complete unfinished fiberglass hood and grill included with car in case new owner would ever want to change the front to a stock 1934 look.GREAT DRIVER! Comfortable for my 6' 2" 250lb. buddy! Numerous awards including Street Rodder top 100 in 2013. Car was at Speed week 2013.

This 1933 Ford Hot Rod is sure to turn heads. This Ford has been heavily modified and is truly one of a kind.



Exterior



This Ford has been chopped 4-5 inches as well as channeled about 5-6 inches (these numbers are as close of an estimate as I could get). The red and silver metal flake paint job has a nice shine to it. The Ford looks to have been painted some time back and does have a couple of spots where the paint has cracked (pictured). The body seems to be very solid and rust free. The vinyl covered top is in good shape and is also removable. The trunk lid has been customized with louvers.



Interior



The white vinyl interior is in nice shape and is clean and free of rips or tears. There is some wear on the driver's door where it comes into contact with the floor. The dash is in nice shape and is painted the same silver metal flake as the outside of the Ford.



Mechanical



This Ford is powered by a 305 cu. in. 5.0L Chevrolet engine. The engine has a 4 BBL Edelbrock carburetor as well as a Edelbrock Performer RPM intake manifold. Custom headers with Supertrapp spark arresters are also installed and have a great sound. The front suspension is a suicide style front end that gives the vehicle its lowered stance. The 3 link mounted rear end has air bag suspension to lower and raise the ride height. An electric Viair compressor is mounted under the body as well as a small air tank. The battery is also hidden in the rear compartment behind the seat as well as they fuel tank. The only gauge in the dash that is hooked up is the water temp gauge. The brake lights work but there aren't any running lights. Also the headlights are not wired up.

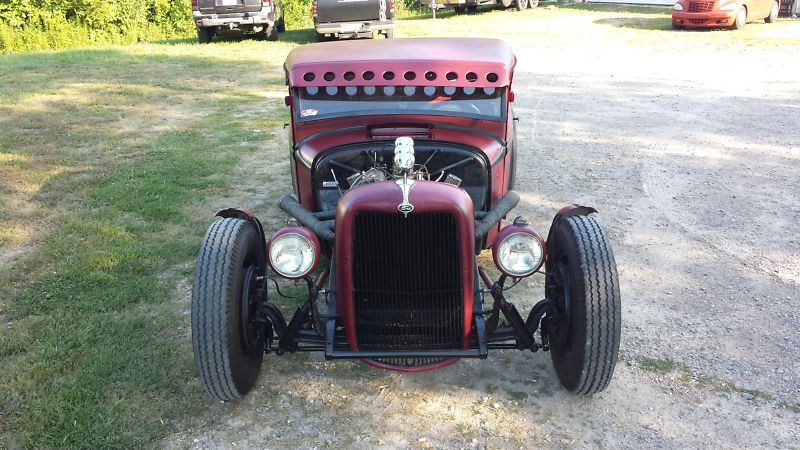

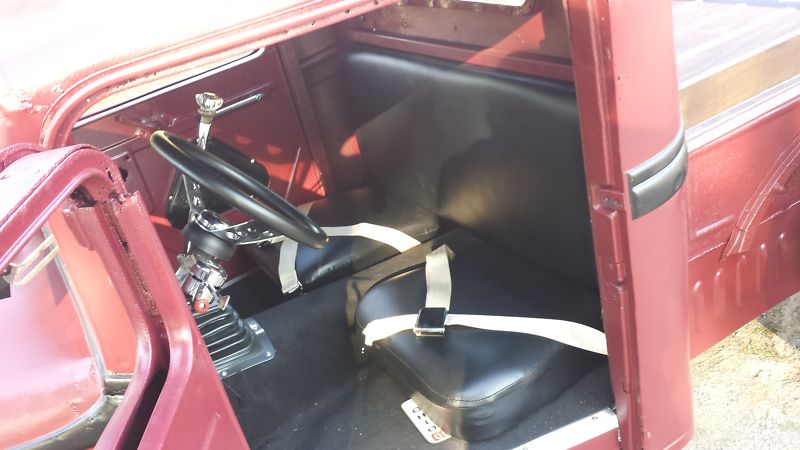

Up for sale is my 1933 Ford pickup truck. The cab, bed, and grille shell are all original 33 Ford steel. They are all very solid with any/all rust removed and patched. It has less than perfect bodywork but is very presentable as a "driver quality" hotrod. It has pitting and minor dents here and there but is overall pretty good. The cab has been chopped approx. 6 inches and channeled 4 inches. The bed has had the floor raised to accommodate the rear kick up in the frame. The grille has been sectioned 2 inches at the bottom to allow for better ground clearance. The front fenders were made from a 36 Ford spare tire cover. They are mounted to the front brake backing plates and turn with the wheels. It is painted with a single stage flat burgundy enamel. The belt lines and firewall are painted with single stage satin black. The suspension/frame and wheels have all been painted with single stage satin black as well. The frame is original Ford Model A from the cowl forwards. From the cowl back is 2x3 box tubing. The frame is very strong and well built. Front suspension is a SuperBell 4" dropped I-beam axle with a Posies spring. Original 40 Ford split wishbones hold it in place. Hotrod style tube shocks hung from Ford F1 style shock/headlight mounts. 40 Ford front brakes with fresh wheel cylinders, springs, shoes, etc. Cross steer set up with a vega box. So-cal steering dampener. Handles very smooth. The front wheels are original 16" Ford spoke wheels with 600-16 bias ply tires. The rear wheels are original 18" Ford spoke wheels with 600-18 bias ply tires. All tires have tubes and are balanced well. Original 32 Ford truck center caps have been painted to match the wheels. Engine is a GM performance crate 350 small block chevy. It's the "Mexican" block which supposedly has the higher nickel content in the casting. RV cam. Vintage Offenhauser 3x2 intake with 3 freshly rebuilt Holley 94 2bbl carbs. They work off an Eelco progressive linkage. They are tuned very well and fire right up. Idles very smooth. There is an Edelbrock mechanical choke cable that runs to the dash but I have literally never used it. Homemade lakes style headers with internal baffles. They have been wrapped so you won't burn your leg off if you accidentally lean up against them after it's been running. Original Delco 12v generator was recently rebuilt and charges the new sealed battery located under the bed. The engine has 2317 trouble free miles since completion. Transmission is a 350Turbo. Shifts very smooth. New Lokar buttonless shifter with an old glass door knob for the shift knob. Rearend is an early GM g-body rear axle. It's located by a pair of hairpin radius rods and a panhard bar. A Posies 40 Ford rear spring gives it a smooth ride. The rear brakes are good. It has a higher gear ratio so very smooth/low RPM on the highway. Still plenty of get-up-and-go off the line. Engine is cooled by a 65 Mustang radiator that is copper/brass construction and is new. 12 gallon poly gas tank is in the rear of the bed. The truck has been professionally wired with a Speedway 12 circuit wiring harness. all wiring is hidden or loomed with a factory style loom so you don't see any of it. All running lights, headlights, turn signals, hazards, and brights work as they should. New Equus black face gauges. Water temp, oil pressure, speedo and odometer work. There is a working cigarette lighter in the dash for a cell phone charger. Original Guide 682c headlights. 33 Ford truck tail lights. New black automotive grade carpet was installed. Seat bottoms are from a 60's VW bug. The seat back is custom made for the truck. Very comfortable to ride in. I am 6'3" tall and fit okay. Steering wheel is a 13" mooneyes 3 spoke. Lokar throttle and brake pedals. Door handles work as they should. Working cowl vent and pop-out windshield with automotive safety glass, not plexi or lexan. There is a modified hand operated windshield wiper on the drivers side if you get caught in the rain. The bed sports a real wood bed floor and oak side rails that have been stained/finished very well.
