1950 Mercury - Chuck Teixeira Empty 1950 Mercury - Chuck Teixeira

Message  Predicta Lun 30 Mar - 13:30

As Larry and I scouted for feature cars at Bonneville a couple of weeks ago we noticed that there were plenty of coupes, roadsters, modifieds and rat rods to choose from – but not too many kustoms. So when we spotted this clean Merc I pulled right over and scurried around looking for the owner. After a few minutes with no success I had to move on to my second resort, the dreaded note left on the seat.
1950 Mercury - Chuck Teixeira Larry_11

Fortunately the owner, Chuck Teixeira, didn’t seem to mind me leaving a note and business card tucked carefully into his seat cushion. Reaching into someone else’s car is really something I despise, but I wanted him to know we dug his car. That evening my phone rang and it was Chuck, excited about the opportunity for a feature shoot.

1950 Mercury - Chuck Teixeira Larry_12

Chuck was a little worried about the grime and bugs, but we insisted they stay. Why? Because they tell a story – one of a guy cruising for over 10 hours to Bonneville in the car he built with his own hands and imagination.

1950 Mercury - Chuck Teixeira Larry_13

On this particular morning Larry and I raced the sun with hopes of good light for the shoot. Mission accomplished.

1950 Mercury - Chuck Teixeira Larry_14

As Larry ran around like a maniac to time his shots with the approaching sun Chuck and I had a chance to talk about his build.

1950 Mercury - Chuck Teixeira Larry_15

Chuck told me how he spent eight years building his car, and how he did everything himself, and how he was a Mechanical Engineer at Specialized Bicycles by day. I had to stop him though, because it was sounding a lot like my own build story. It’s pretty amazing how quickly you can make a new friend when things like cars, fabrication and design are the topics of discussion.


1950 Mercury - Chuck Teixeira Larry_16

Chuck had me beat though. He not only envisioned, engineered and executed all of the drivetrain, suspension and body mods, he also did his own paint and upholstery. Don’t you just want to shake his hand?


_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 45784
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

1950 Mercury - Chuck Teixeira Empty Re: 1950 Mercury - Chuck Teixeira

Message  Predicta Lun 30 Mar - 13:33

1950 Mercury - Chuck Teixeira Larry_17
People told him to not go too wild on the paint, that the heavy Roth flake would be tacky – but he went for it anyways. Here’s proof that when you have a vision you’re best served to stick with it.
1950 Mercury - Chuck Teixeira Larry_18

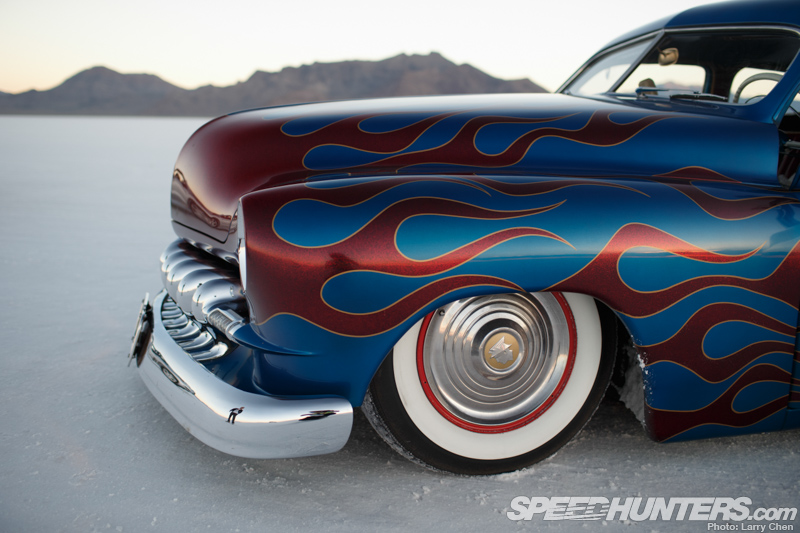

Chuck is particularly fond of his flame job, and rightfully so. Look at how the flames fill the front half of the car, following the classic Merc bodyline. The shape’s right too, they have that perfect traditional flavor.


1950 Mercury - Chuck Teixeira Larry_19

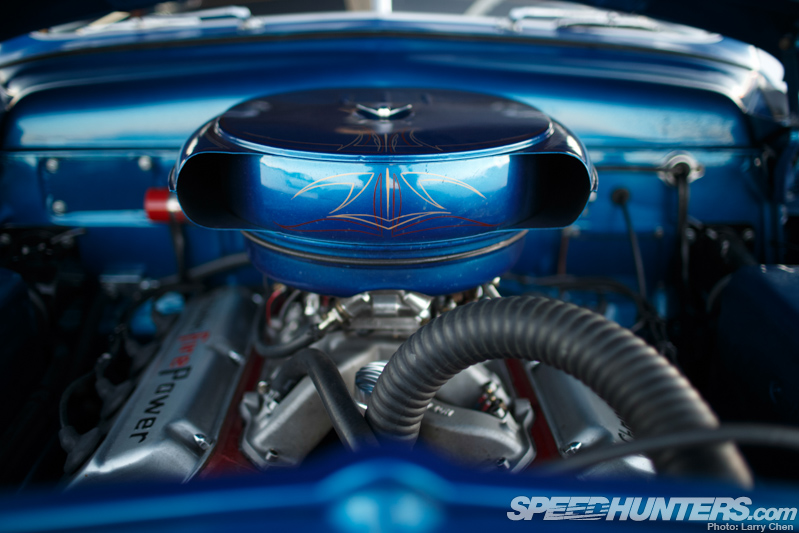

Another part of the car that Chuck is proud of is the drivetrain. Many kustoms get by with a so-so engine, but Chuck had a little fun here by way of ordering a catalog worth of speed parts for his 1956 Hemi. On top of that he machined his own accessory drive system (yes, even the pulleys), positioning the belts low to keep the engine looking simple and clean.

1950 Mercury - Chuck Teixeira Larry_20

When you get into a project of this magnitude, you end up making a lot of things by hand. Problem is, most people will never notice until they’re pointed out. In this case Chuck reworked the old oil bath Caddy air cleaner to accept a regular filter and mate it to his Holley carburetor.

1950 Mercury - Chuck Teixeira Larry_21

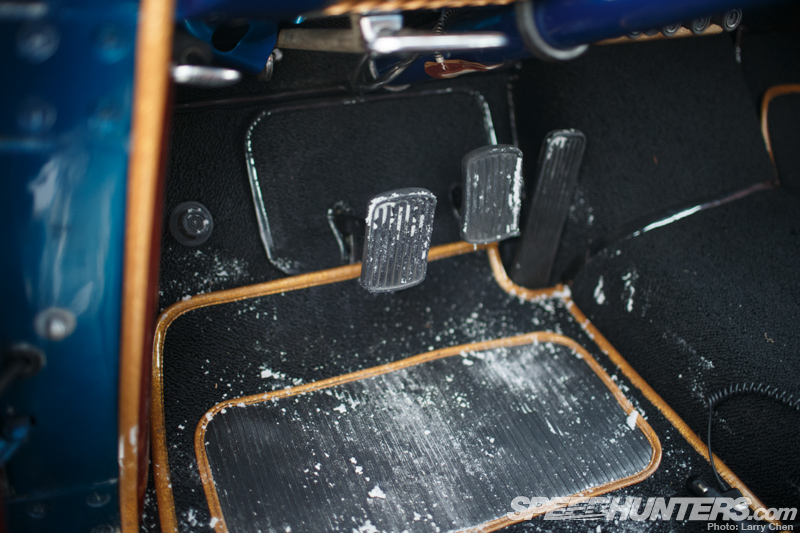

You can’t see the Muncie four-speed bolted behind the Hemi, but the extra pedal gives it away. Most kustom guys don’t worry too much about hot-rodding around, but Chuck wanted his car to be fun to drive. I love the use of factory-style rubber pedals in a car that’s anything but stock. Also notice the matching carpet and mats: You can’t buy those. Chuck busted out a sewing machine and learned how to make every shred of upholstery on the interior, including edging the carpet and putting factory style rubber on the mats.

1950 Mercury - Chuck Teixeira Larry_22
Of course you can’t say “upholstery” when referencing a kustom without imagining classic tuck ‘n roll pleats everywhere. Chuck knew this and he made the little sewing machine comply – sometimes through more layers of sparkly vinyl than it liked.

1950 Mercury - Chuck Teixeira Larry_23


_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 45784
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

1950 Mercury - Chuck Teixeira Empty Re: 1950 Mercury - Chuck Teixeira

Message  Predicta Lun 30 Mar - 13:35

1950 Mercury - Chuck Teixeira Larry_26
Laying down straight, parallel and evenly spaced pleats is no easy feat, especially for a first-timer. Notice how much he mixed up the color palette too, yet it holds together nicely.

1950 Mercury - Chuck Teixeira Larry_24
See those RCA speaker grilles? Those aren’t in a catalog either. Chuck drew them up and had them cut on a waterjet before polishing and installing vintage gold speaker mesh on the back.

1950 Mercury - Chuck Teixeira Larry_25
The instrument panel just needed a good cleaning and some paint work.
1950 Mercury - Chuck Teixeira Larry_27

Chuck painted the steering wheel to match, and introduced yet another color that works with the flow of the interior. He scored the tiki at a swap meet in Hawaii, then machined a taper onto the long stainless shift lever before bending it to fit around the dropped factory bench seat.
1950 Mercury - Chuck Teixeira Larry_28

Even the sun visors couldn’t escape the kustom treatment; which brings me to an aspect which that really impressed me on this build. For all the custom work he undertook, Chuck still included things like visors, air conditioning and windshield wipers to make sure the car was comfortable going down the road, all without taking away from the look.

1950 Mercury - Chuck Teixeira Larry_29
Which is precisely why Chuck built his Merc, to take it out and enjoy it. I’ve seen plenty of rat rods coated in salt, but seeing the white stuff crust up on a beautiful kustom is another level entirely.


_________________
We don't care the People Says , Rock 'n' roll is here to stay - Danny & the Juniors - 1958
Predicta
Predicta
Admin

Messages : 45784
Date d'inscription : 09/11/2012

http://kustomkingdom.blogspot.fr/

Revenir en haut Aller en bas

1950 Mercury - Chuck Teixeira Empty Re: 1950 Mercury - Chuck Teixeira

Message  Predicta Lun 30 Mar - 13:38

1950 Mercury - Chuck Teixeira Larry_30
The bumpers are stock Mercury, with the exception of shaved mounting bolts. For the tail lights Chuck came up with an idea that echoes the commonly utilized ’50 Pontiac light…

1950 Mercury - Chuck Teixeira Larry_31
… by flipping ’59 Cadillac lights backwards. This is a tunneled tail light like I’ve never seen before.

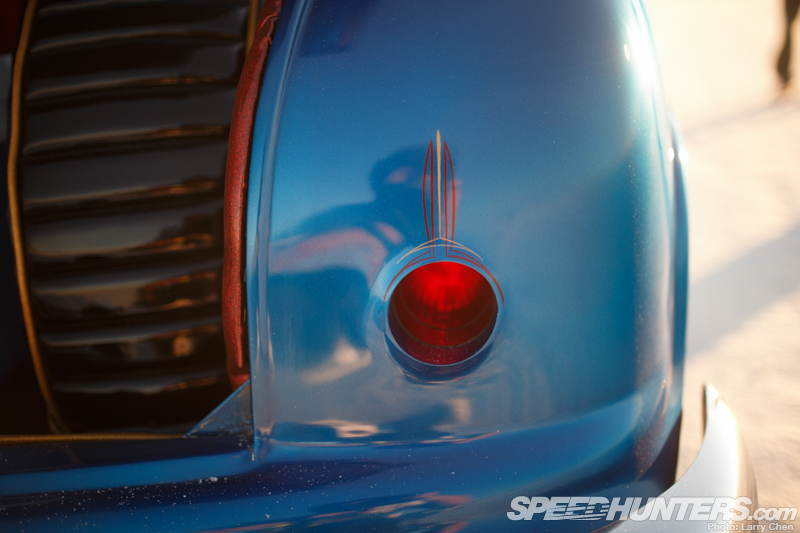

1950 Mercury - Chuck Teixeira Larry_32
I wanted to make sure Larry photographed the car with the windows up, because frankly this is where a lot of chops fall short. Chuck got rid of the front and back vent windows and had one-piece glass made. He also made the polished window trim out of 1/2-inch aluminum plate which he cut on a bandsaw before rounding the edges with a wood router.

1950 Mercury - Chuck Teixeira Larry_33

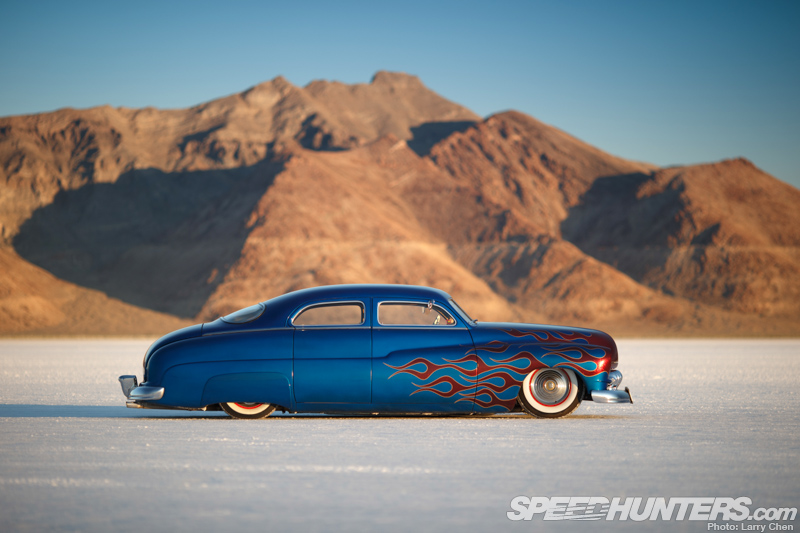

I’d be remiss if I didn’t mention the fact that Chuck’s Merc has four doors, but I’ve left it for last to prove a point.

1950 Mercury - Chuck Teixeira Larry_35
Weren’t you nodding your head and agreeing that this is a bitchin’ kustom that whole time?

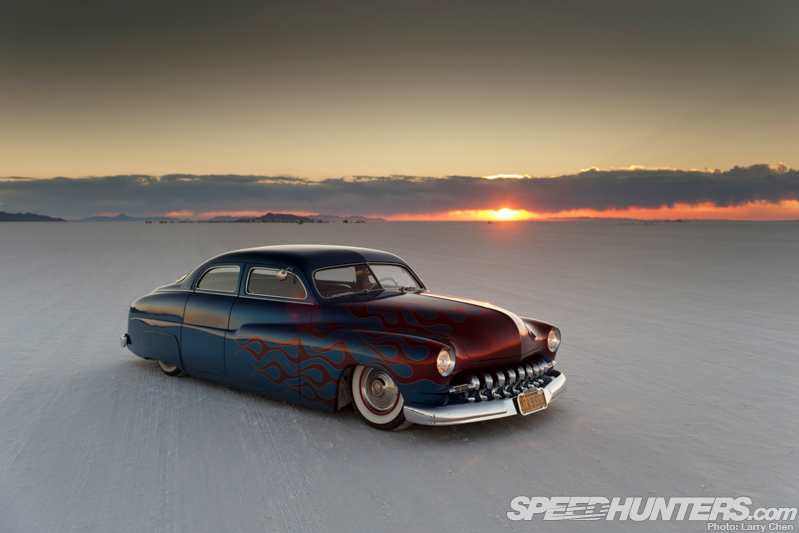

Therein lies the genius of this build: Chuck took a sedan that most would pass on and gave it a perfect kustom silhouette with all the right touches. This guy’s got skills.
1950 Mercury - Chuck Teixeira Larry_34
Words by Keith Charvonia
Instagram: SpeedhuntersKeith
keith@speedhunters.com

Photos by Larry Chen
Instagram: larry_chen_foto
larry@speedhunters.com

Bonneville: Chasing The 300mph Club

Temple of Speed: The Bonneville Salt Flats

More Bonneville stories on Speedhunters

Chuck Teixeira’s 1950 Mercury Sedan

Engine
1956 Chrysler Hemi, 354ci, 10:1 compression, Engle cam, valve springs, retainers & lifters, Manley valves, forged Ross pistons, Total Seal rings, ARP hardware, machining by Engine Machine Service, accessory drive brackets and pulleys machined by owner, modified ’56 Cadillac air cleaner, Holley 750cfm carb, Hot Heads dual plane intake manifold, Holley fuel pump, PAW coated headers, Flowmaster 40-series mufflers, MSD Pro Billet distributor, Blaster II coil, Dodge van junkyard radiator, Painless wiring

Driveline
M22 Muncie Rock Crusher 4-speed manual, 1957 Ford wagon 9-inch rear axle, 3.56 gearing, junkyard Lincoln driveshaft, McLeod Corvette clutch with SBC flywheel, Wilcap transmission adapter, McLeod hydraulic clutch

Suspension/Brakes
Fatman Fabrication frame stub and crossmember notched 1.5-inch to lower engine, Fatman Fabrication tubular stainless steel control arms, Firestone airbags, Ridetech parallel four-link, manual Mustang II steering rack, Monroe shock absorbers, Ford Granada 11-inch disc front brakes, Mercury rear drum brakes

Wheels/Tires
Ford 15×6 wheels with 205/75R15 whitewalls

Exterior
3-inch chop, stock bumpers with shaved mounting bolts, front and rear fenders molded to body, nosed, decked, rounded hood corners, shaved trunk handle, frenched headlights, 1952 Desoto grille bought from Gene Winfield, molded Desoto lower pan, Desoto front signal lights, removed front and rear vent windows, inside out 1959 Cadillac tail lights, handmade window trim, shaved side moldings, shaved door handles and gas door, four-stage House of Kolor ‘Stratto Blue’ paint, Oriental Kosmic Kandy, Roth Retina Red metal flake, all work by owner except for pinstriping by Ray “The Vulture” Perero

Interior
Black patent leather headliner, gold sparkle windlace, red sparkle tuck ‘n roll pleats, custom-fit carpet and floor mats, custom RCA speaker grilles, matching trunk upholstery, hidden audio, Vintage Air air conditioning, two speed wipers, all work by owner

http://www.speedhunters.com/2013/08/sedan-on-the-salt-a-mercury-kustom/
